Astryx.

Astryx is the calibration reference: the instrument was built against it, so it is scored here under the same conditions as the field but never ranked among it. It documents itself thoroughly and its own source draws on its tokens consistently, though that discipline thins once code outside the package starts consuming it. The trial bore out what the static read predicted on single source and legibility, and surfaced a composition problem that only showed up under live use, on the informed arm. Measured at packages/core.

1Scores

What the instrument measured.

9Single source · systematic237 distinct token(s) across 11 sources; 75% of colour/size references in system source resolve to a token; dark-mode handling is generated.
10Legibility · systematic270 of the 276 components found in system source carry documentation in some form (a head comment, a colocated doc artifact, or a docs/ entry). Scored from what is in the repository. Documentation held outside it (e.g. Confluence, Notion, Figma) cannot be detected and is neither credited nor penalised.
4Adherence · partial1392 of 2618 application file(s) gated against the design system's own contract; 29.9% of style declarations resolve to a token.
7.7Mean of 3of measured
Constraintnot computed by this instrument: scoring it requires parsing component APIs per framework, which is done in the deep audit of a single system rather than across a field
Fidelitynot computed by this instrument: scoring it requires parsing component APIs per framework, which is done in the deep audit of a single system rather than across a field
Completenessrequires a live agent run: a gap only exists relative to something someone tried to build
Trial · informed / cold10 / 10 completeness
10 / 2 legibility
8 / 3 constraint
6 / 8 interaction
2What the instrument read

Measured against a pinned commit.

Repository
facebook/astryx
Revision
53bc34db7c9d, committed 2026-09-09
System directory
packages/core (@astryxdesign/core)
Components found
276, of which 270 carry documentation and 174 have a colocated doc artifact
Agent context
2 context files, 0 skills
Tokens
237 distinct, across 11 sources (11 authored); dark mode generated
Adherence surface
2,618 files outside the system, graded own-docs-site: the apps, and the lab, charts and richtext packages.
3Findings

What the counts point at.

Each finding carries its count, its severity and up to three file references. A finding on a property that was not banded is still a finding; it is reported without a score.

Single source9
885 hardcoded colour and size values in component sourcemajor

The design system's own component source hardcodes colour and size values instead of referencing its own tokens. This happens in 885 of 3595 total colour/size references in system source (24.6%), so an agent copying that file as a pattern copies the hardcoding along with it.

  • packages/core/src/theme/syntax/presets.ts:23 #c678dd
  • packages/core/src/theme/domainTokens/dataTokens.ts:21 #0171E3
  • packages/core/src/Spinner/Spinner.doc.mjs:14 10px
11 separate places tokens are declaredmajor

Design tokens are declared in more than one place in this repository's own authored source, so a value changed in one must be kept in agreement with the others by hand.

  • packages/core/src/theme/tokens.stylex.ts stylex, 162 token(s)
  • packages/lab/src/SVGIcon/tokens.stylex.ts stylex, 24 token(s)
  • internal/vibe-tests/fixtures/shadcn-tailwind-v4-established/src/index.css css, 19 token(s)
Legibility10
6 undocumented componentsmajor

Some components carry no documentation an agent could find. That is 6 of the 276 components found in system source, with no head comment on their own source, no colocated doc artifact matching their name, and no docs/ entry, so an agent must reverse-engineer their contract from implementation alone.

  • packages/core/src/Table/plugins/filtering/index.ts
  • packages/core/src/Table/plugins/pagination/index.ts
  • packages/core/src/Table/plugins/selection/index.ts
Adherence4
10,167 hardcoded colour valuesmajor

The application hardcodes colour values instead of using the design system's own tokens, so an agent editing nearby code has no signal that a token exists and will likely repeat the pattern.

  • packages/themes/probe/src/probeTheme.ts:39 hsl(19.9 84% 57%)
  • packages/cli/assets/templates/themes/butter/butterTheme.ts:29 #52237b
  • packages/themes/butter/src/butterTheme.ts:29 #52237b
36 components that duplicate one the system already shipscritical

The application defines its own component under the same name as one the design system already ships. This happens for 36 of the 308 component names the design system exports, so an agent importing that name by convention can silently get the wrong implementation.

  • apps/docsite/src/app/playground/defaultCode.ts DEFAULT
  • apps/docsite/src/app/playground/themeEditor/constants.ts ALL
  • apps/example-vite-tailwind/src/App.tsx:24 App
69 raw HTML elements used where a system component existsmajor

Some screens render a raw HTML element in place of the system component built for it. This happens in 69 of 1227 total uses of a replaceable element (5.6%), so its styling and behaviour can drift independently of the system.

  • apps/sandbox/src/components/themePreview/ThemeAuditDrawer.tsx:512 <button>
  • internal/vibe-tests/fixtures/enterprise-scoped-synthetic/src/App.tsx:81 <button>
  • internal/vibe-tests/fixtures/shadcn-tailwind-v4-established/src/App.tsx:114 <input>
4The trial

Built twice: cold, then informed.

Set up from its own documentation, in full, with every step that could not be followed recorded. Draw 1 of 3, judged; draws 2 and 3 pending.

Cold arm, draw 112 min · 2 files read · completed

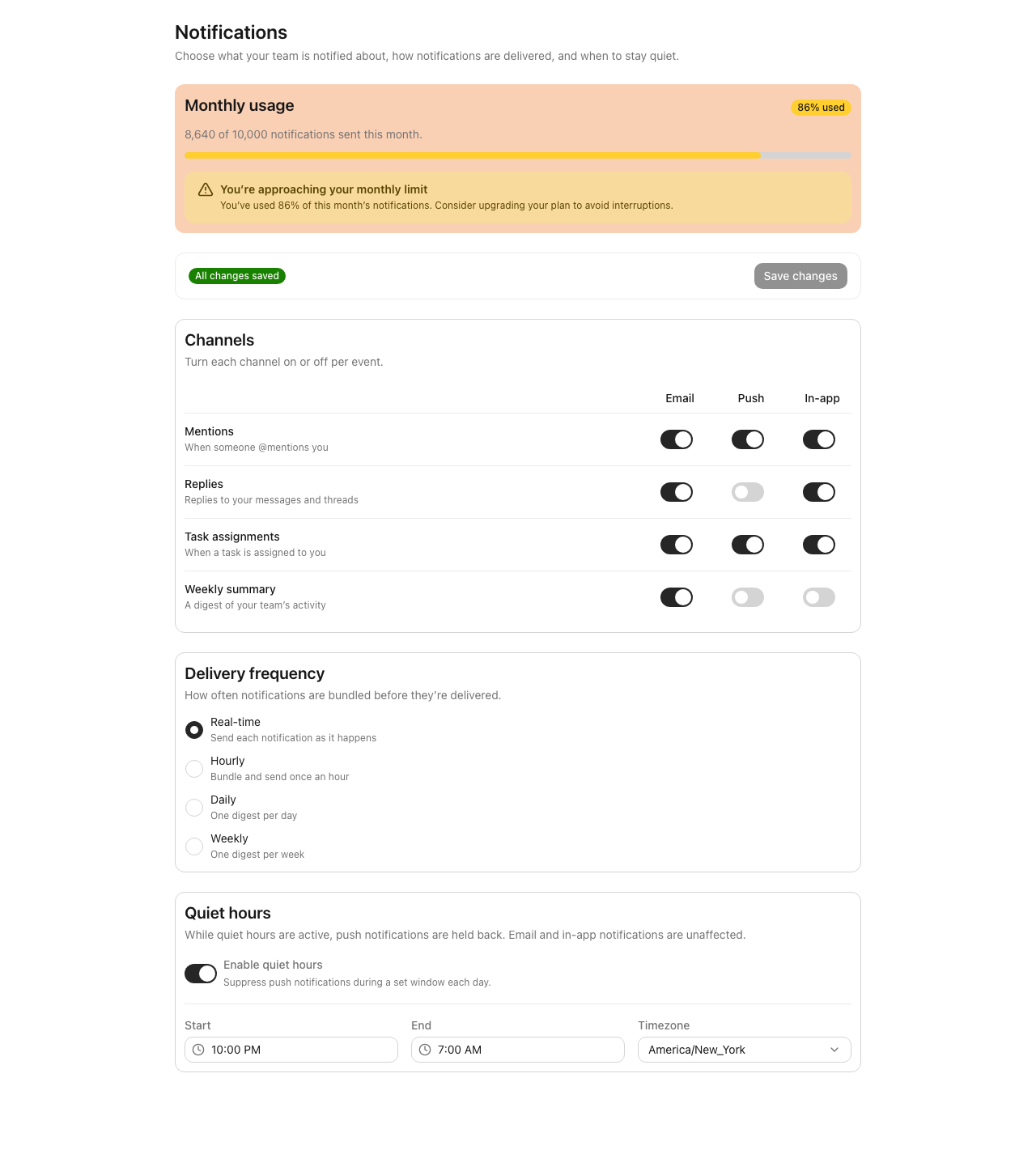

astryx-cold-r2 at 1280px
1280px

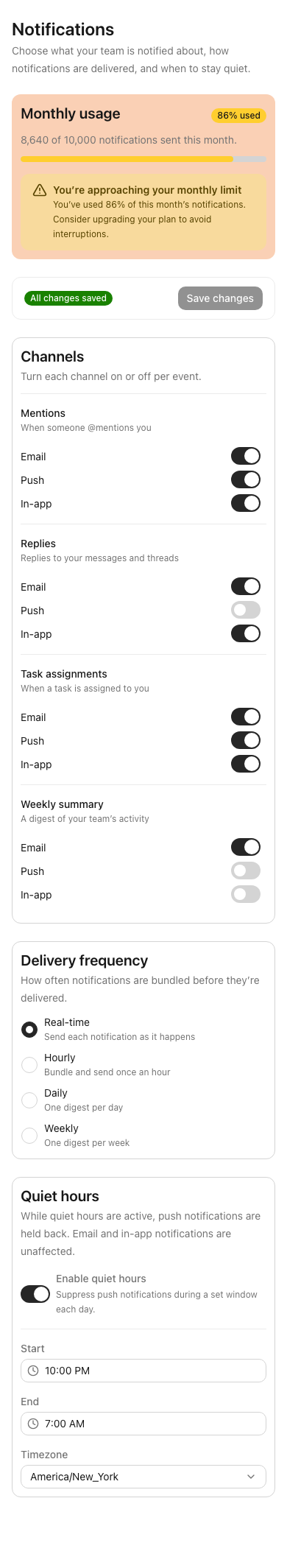

astryx-cold-r2 at 390px
390px
3Constraint
2Legibility
10Completeness
8Interaction
Informed arm, draw 112 min · 7 files read · completed

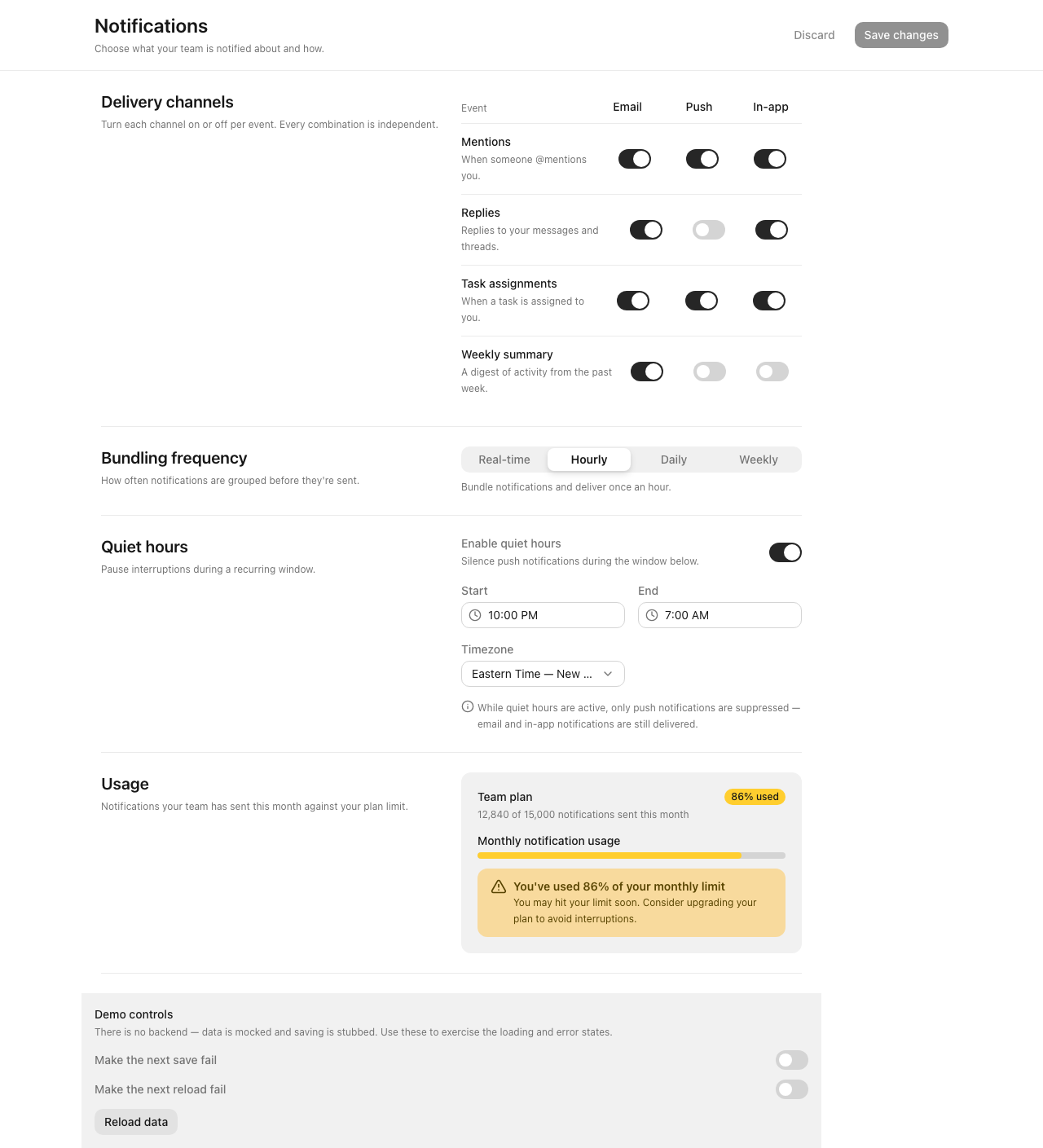

astryx-informed-r2 at 1280px
1280px

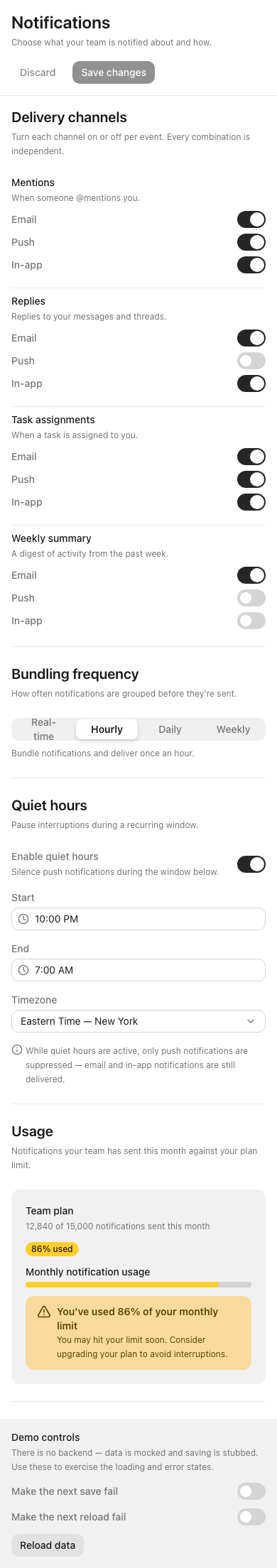

astryx-informed-r2 at 390px
390px
8Constraint
10Legibility
10Completeness
6Interaction

What setting it up found

recorded

The README's own top callout reads: '**Building with an AI agent?** Run `npx astryx init` first.' Run literally as written (bare `npx astryx`, before @astryxdesign/cli is a project dependency), this resolves to a completely different, unaffiliated public npm package named `astryx` (verified on the public npm registry: a single unrelated maintainer, unpacked size 424 bytes, no `bin` entry at all, so it is not even a runnable CLI). The correct scoped form, `npx @astryxdesign/cli init`, appears only later, inside the CLI's own runtime output (the redirect banner printed by docs.mjs), never at the point in the README where the bare instruction is given. This recipe does not run either form; see the last entry below for why.

recorded

The README's 'Component Docs' section instructs exactly this for full component documentation: `node node_modules/@astryxdesign/core/docs.mjs Button`. Running that command exactly as documented, immediately after installing the package per the Quick Start, does not print component docs. It always prints a fixed redirect banner instructing you to install and run the CLI instead, regardless of whether @astryxdesign/cli happens to be installed. The documented command never succeeds at its own stated purpose.

recorded

The 'Vite' quick-start section is two lines: the install command, then 'Same CSS imports and providers as above. No build plugins needed; Astryx ships pre-built.' The providers.tsx example given 'above' (in the immediately preceding Next.js section) imports `Link from 'next/link'` and opens with `'use client'`, both Next.js-specific and absent from a Vite project (there is no next/link module and no server/client component split to declare). Followed literally, the Vite section point at code that cannot compile outside Next.js. In practice, Astryx's Link component falls back to a plain `<a>` element when no LinkProvider is supplied (confirmed by reading the Link source directly (node_modules/@astryxdesign/core/src/Link/: LinkContext.ts defaults the context to null and useLinkComponent.ts resolves `as ?? ctx?.component ?? 'a'`, so with no provider it falls back to a native anchor); the README never states this default exists), so this recipe's providers.tsx omits LinkProvider entirely for the router-less Vite scaffold. That fallback behavior was filled in from source, not from documentation, because the docs are silent on it.

recorded

@astryxdesign/core's package.json declares `@stylexjs/stylex: ^0.19.0` as a required peerDependency, but the Quick Start's pre-built CSS/JS path (the one this recipe follows, for both Next.js and Vite, explicitly billed as needing 'no build plugins, no PostCSS, no Babel config') never mentions installing it and never uses it at runtime (grepped dist/index.js for every occurrence of 'stylex': none). Modern npm (7 and later, used here) auto-installs unmet peer dependencies by default, so @stylexjs/stylex 0.19.0 was silently pulled into node_modules anyway with no error; an npm configuration that does not auto-install peers, or an older npm major version, would instead surface an ERESOLVE-style peer-dependency warning about a package the documented install path does not actually need.

Screens generated

ArmDrawDateDurationFiles readOutcome
cold12026-08-1412 min2completed
informed12026-08-1412 min7completed

Model: claude-opus-4-8. Generated under GitHub Actions isolation, the agent's own environment, with the frozen task text and no interaction. Files read is the number of repository files the agent opened, from its own transcript.

Cold arm, draw 1 · the working

2Constraint in practiceSet by the volume reading. Kinds: 3, violations of two kinds (3 hardcoded colours, 26 hardcoded dimensions). Volume: 2, twenty one to forty in total. The worse of the two is the score.
2Legibility in practiceRead package.json, the src listing and the dist type definitions of ten components; never a README or a docs page. The output nonetheless uses Switch, RadioList, TimeInput, Selector, ProgressBar, Card and Banner from the package.
10CompletenessTime range and timezone: 10. Astryx ships TimeInput and Selector; both used. The system anticipated the gap. Usage meter: 10. Astryx ships ProgressBar with status variants plus Badge and Banner; the 86% state uses the warning variant. Anticipated.
8Interaction8 of 10 checklist items observed.
Counted
3 hardcoded colours, 26 hardcoded dimensions, 0 raw elements where a component exists, 67 uses of the system's components, 0 foreign UI imports, 0 invented names.
Read
0 documentation reads, 18 reads of the package's source or types; went looking for documentation unprompted: no.
Checklist
I1 yes · I2 yes · I3 yes · I4 yes · I5 yes · I6 yes · I7 yes · I8 no · I9 yes · I10 noI8: loading and load failure render, not observed (probe: loading state seen at first paint; load-failure state not rendered under the query spellings tried). I10: every control keyboard reachable, not observed (probe tab walk: 13 toggles, 0 time inputs, 1 selects reached, save not reached, focus visible on 100%)
Composition
Six no's: conforms. Every group on a Card surface, page inset on all sides, ~90px of ground below the last card at 1280. Matches the 2026-08-14 read (preferred over informed).

Informed arm, draw 1 · the working

8Constraint in practiceSet by both readings. Kinds: 8, one violation of one kind (1 hardcoded dimensions). Volume: 8, one violation. The worse of the two is the score.
10Legibility in practiceRead the core README, ran the system's own CLI (`astryx init`, `docs layout`, `template settings`, per-component docs) and built from them. The output follows the documented layout primitives closely; that is what made it worse to look at, which is a composition finding, not a legibility one.
10CompletenessTime range and timezone: 10. TimeInput and Selector, per the docs. Usage meter: 10. ProgressBar plus Badge and Banner with warning and error variants, per the docs.
6Interaction6 of 10 checklist items observed.
Counted
0 hardcoded colours, 1 hardcoded dimensions, 0 raw elements where a component exists, 118 uses of the system's components, 0 foreign UI imports, 0 invented names.
Read
0 documentation reads, 6 reads of the package's source or types.
Checklist
I1 yes · I2 yes · I3 yes · I4 yes · I5 no · I6 yes · I7 no · I8 no · I9 yes · I10 noI5: unsaved changes indicated, not observed (probe: changed a control; unsaved wording did not appear). I7: success and failure each communicated, not observed (probe: success wording seen; failure wording not seen (demo control "Make the next save fail")). I8: loading and load failure render, not observed (probe: loading state seen at first paint; load-failure state not rendered under the query spellings tried). I10: every control keyboard reachable, not observed (probe tab walk: 15 toggles, 0 time inputs, 1 selects reached, save not reached, focus visible on 100%)
Composition
Q1: content touches a viewport edge; Q3: a unit sits on no surface. the 2026-08-14 read, reproduced: groups sit in undifferentiated flow separated by rules (Q3), and the demo-controls panel runs wider than the content column and ends within ~12px of the page bottom (Q1). The informed agent used the system's layout frame (VStack, HStack, Grid) and no card.

Judged 2026-09-09 by an agent under authorisation; a second read is pending. Constraint from the counts, banded twice, on how many kinds of the system's rules the output broke and on how many times it broke them, with the worse of the two published (deviation of 2026-09-10). Legibility and completeness from the transcript and the source, interaction from the ten-item checklist, composition from the six contract questions. Hover a checklist item for its observation.

5Reproduce it

Clone the repository at the revision above, point the instrument at the system directory, and the same numbers come out. The field manifest, the run script and the full payload this page was built from are committed beside it. Methods.
